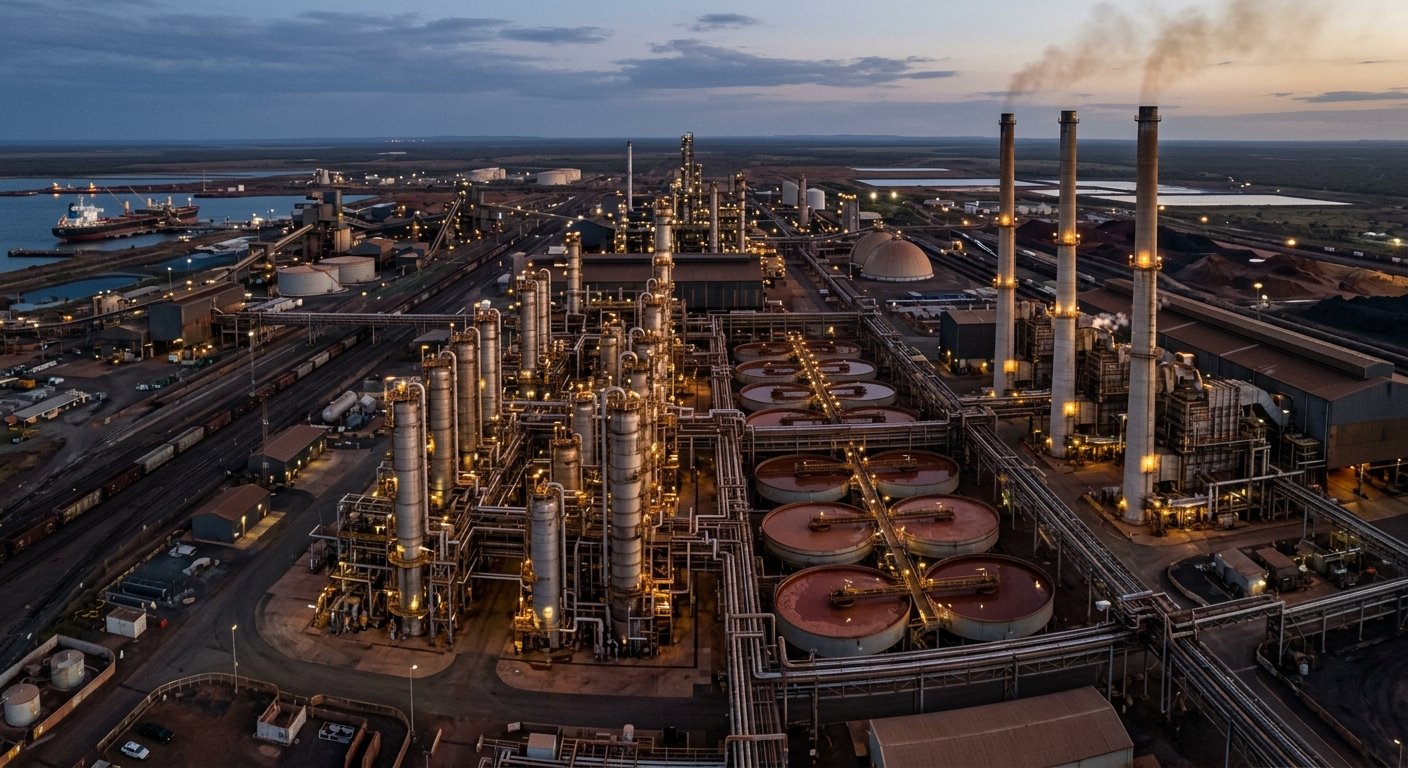

What Is the Bayer Process? (A 60-Second Explanation)

The Bayer process is the industrial method used to refine bauxite ore into alumina (Al₂O₃) through four sequential stages: caustic digestion, clarification, precipitation, and calcination. Over 95% of the world's bauxite production is processed this way, yielding approximately 135 million tonnes of alumina per year [1][2]. The calcination stage, where aluminium hydroxide crystals are heated to 900-1,000 °C in a rotary calciner, is the thermal heart of the process and the stage where kiln sealing technology directly affects refinery efficiency.

This piece is the companion to calcined alumina uses, which covers what the resulting Al₂O₃ is used for across smelting, refractories, ceramics, and abrasives.

Digestion: the chemistry that gives the process its name

The reaction Karl Bayer patented in 1888 turns on a simple selectivity: at temperature, hot sodium hydroxide dissolves the aluminium-bearing minerals in bauxite (gibbsite, boehmite, and diaspore) into soluble sodium aluminate while leaving the principal impurities (iron oxides, silica, titania) as insoluble solids. The digestion happens in pressurised autoclaves or tube digesters, with operating conditions set by the dominant aluminium mineral in the ore. Gibbsite-rich bauxites from Guinea, Australia, and Brazil dissolve readily at 140-150 °C and around 0.4 MPa; boehmite ores need 230-260 °C and 3-4 MPa; diaspore ores from China and parts of Eastern Europe demand 260-280 °C and pressures approaching 6 MPa [4]. Caustic concentration in the digestion liquor is typically 140-250 g/L NaOH. The bauxite ratio (tonnes of bauxite needed per tonne of alumina) follows from ore grade and runs from about 1.9 to 3.6 depending on the deposit.

Clarification and precipitation: separating mud, then growing crystals

The hot pregnant liquor leaving digestion carries dissolved sodium aluminate together with suspended red mud. Clarification is a sequence of settling, washing, and filtration steps that drops the mud to lined impoundments and leaves a clear liquor for crystallisation. Precipitation is then the reverse of digestion: cooling the clear liquor and seeding it with fine aluminium hydroxide crystals causes Al(OH)3 to come out of solution in a controlled, slow crystallisation over 30-60 hours. The seed charge typically runs at three to five times the mass of product expected, and the precipitation tank trains can be a kilometre long in a 1-2 Mt/y refinery. The size distribution and crystal morphology of the precipitate are tuned at this stage, because once locked in, those properties carry through calcination into the final alumina powder.

Calcination: where the rotary kiln does the work

Calcination is the high-temperature step where the washed Al(OH)3 hydrate is heated to 900-1,000 °C, driving off chemically bound water in two stages, first to the boehmite oxyhydroxide AlOOH, then to anhydrous alpha-alumina (alpha-Al2O3) [8]. The thermal duty is significant: removing the roughly 35% mass loss as water vapour from a 1 Mt/y feed of hydrate means the calciner has to move and heat about 350,000 tonnes of water out of the solid charge each year. Most modern Bayer refineries use either a long rotary calciner (around 80-100 m long, 3-4 m in diameter, residence time of 60-90 minutes) or a circulating fluid bed calciner (more compact, faster, lower thermal mass). Both belong to the same equipment family as a cement or lime rotary kiln, and both depend on the same end-seal technology: rotating drum, stationary hood, hot dust and gas inside, ambient air outside, all of which has to be kept apart.

The reason seal integrity is a refinery-economics issue is that false air ingress at the calciner inlet or discharge dilutes the kiln gas and drops its temperature, which the burner then has to compensate for by burning more fuel. Industry rules of thumb put each 1% of false air at roughly 0.5-1% extra specific fuel consumption, and a poorly sealed calciner can run 5-10% off-target on energy. The refractory wear signs piece sets out how seal leakage shows up as a refractory and shell-temperature pattern, and Oswal's mineral-processing kiln sealing work covers the equipment class as a whole.

Where the bauxite comes from and where the alumina goes

Bauxite mining is concentrated in a handful of countries: Australia at roughly 100 Mt/y, Guinea at around 90 Mt/y (mostly gibbsite-rich ore exported to China), China at around 90 Mt/y, with Brazil and Indonesia behind [7]. Refining capacity tracks energy infrastructure rather than mining: China refines around 75 Mt of alumina per year, Australia around 20 Mt, with smaller hubs in Brazil, India, and the Gulf. World alumina output of around 135 Mt/y feeds aluminium-smelting demand of about 70 Mt/y, since two tonnes of alumina are consumed per tonne of aluminium in a Hall-Heroult cell [1][7]. Most output is therefore smelter-grade alumina (SGA), with a smaller but high-value share going to the specialty grades discussed in calcined alumina uses.

Red mud: the environmental balance sheet

Each tonne of alumina leaves behind roughly 1.0 to 1.5 tonnes of red mud at modern refineries, and up to 2.5 tonnes at older plants or those processing iron-rich ores [9]. The world inventory of stored red mud is in the region of 4 billion tonnes and growing, and the slurry is alkaline at pH 10-13. Most operators have moved from legacy wet-pond storage to dry-stacking in lined impoundments, which drops water content from around 50% to under 30%. Red-mud valorisation research (iron recovery, cement SCMs, rare-earth extraction) continues but at small scale relative to the stockpile.

How the process fits into the wider rotary-kiln industry

The Bayer calciner sits alongside cement kilns, lime kilns, and sponge-iron kilns in the same equipment family. They share rotary geometry, counter-current gas flow, refractory-lined hot ends, and the same failure modes around end seals and riding rings. The lessons travel: residence time governs conversion, fuel intensity scales with false-air ingress, and the gap between a calciner that hits its energy target and one that does not is usually a sealing question, not a chemistry one. The vertical shaft vs rotary lime kilns piece is a useful neighbouring read on why rotary geometry dominates for high-throughput calcination.
