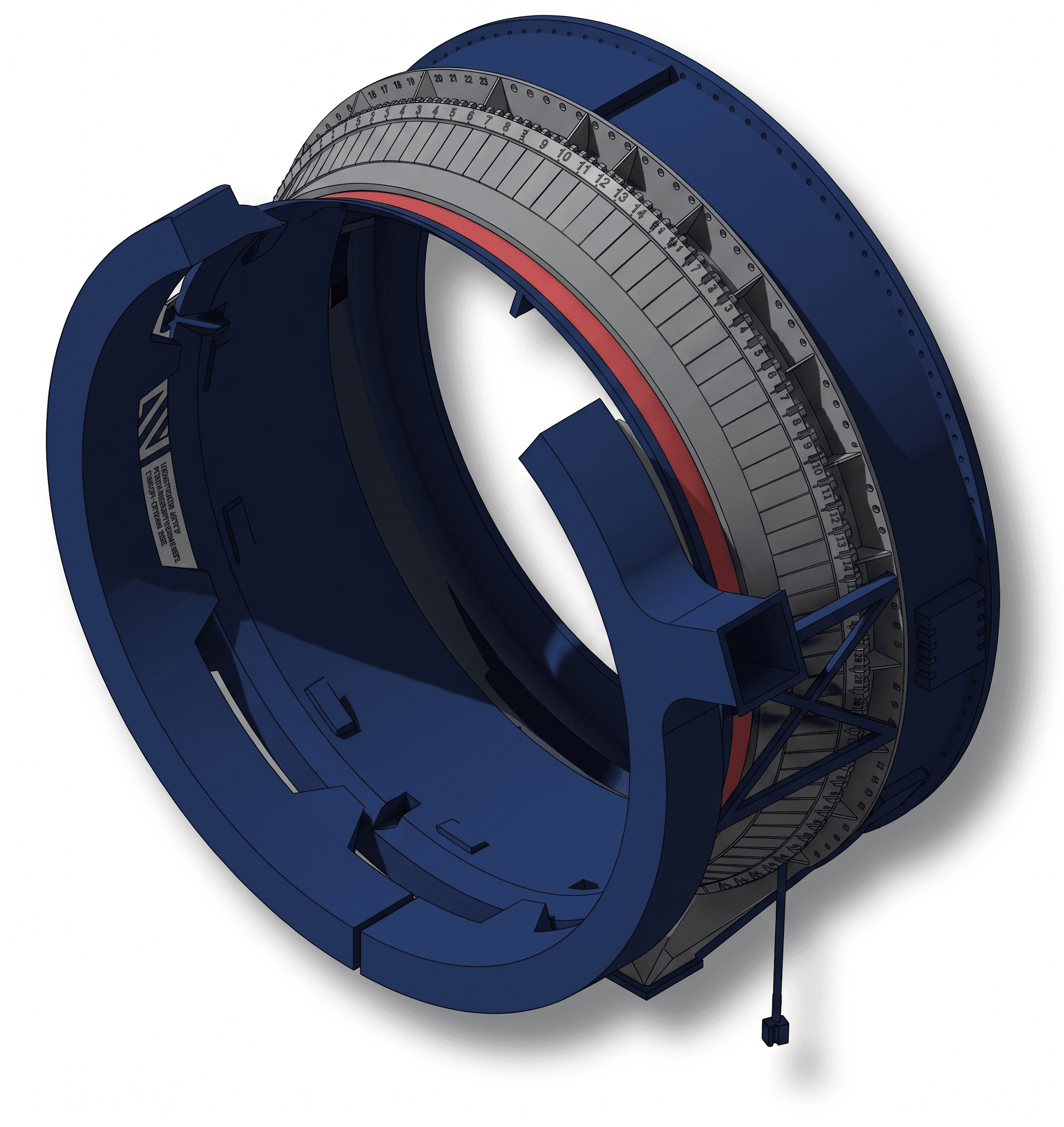

Lamella Kiln Seal
Resilient Sealing Performance in High-Temperature Clinker Production
Lamella-based sealing elements are engineered to provide adaptive sealing performance in rotary kiln systems subjected to continuous mechanical movement. Unlike rigid sealing components, lamella segments are designed to flex in response to shell deformation, axial displacement, and radial expansion.
Engineering Outcome
“Dynamic movement compensation. Controlled sealing pressure. Continuous contact under shell deformation.”
Adaptive Lamella Sealing: Spring-Loaded Compliance
Lamella-Based Sealing Elements are the spring-loaded compliant sealing components used in lamella-only Oswal kiln seals and as the primary motion-absorbing stage in the Duplex hybrid design. Lamella elements absorb shell ovality, axial drift, and dynamic kiln motion, maintaining contact pressure through movement that would defeat a rigid graphite-only seal. Lamella selection (spring rate, contact pressure, material grade) is matched to the specific kiln's diameter, motion characteristics, and atmosphere. The element is a replaceable wear component within Oswal sealing systems.
A sealing element in this environment must maintain contact while accommodating movement - without excessive rigidity or premature wear. Shell deformation occurs due to thermal gradients, tyre-induced ovality, load redistribution, and mechanical stress cycles.
Operating Conditions
- Continuous kiln rotation
- Shell ovality
- Radial expansion during heat-up
- Axial displacement due to thermal growth
- Mechanical vibration
- Dust-laden abrasive conditions
Lamella segments serve as adaptive sealing interfaces. They deflect in response to shell irregularities, maintain uniform contact across the sealing arc, and prevent gap formation during deformation cycles. Material selection and segment design ensure fatigue resistance, structural elasticity, and long-term dimensional stability.
Three key engineering principles that define the Lamella Kiln Seal:
Flexible adaptation to shell movement
Controlled contact pressure distribution
Mechanical resilience under dynamic conditions
Continuous sealing contact across varying geometries
Continuous sealing contact across varying geometries
Fatigue resistance under cyclic flexing
Fatigue resistance under cyclic flexing
Applicable Industries
Engineered for multiple sectors
Engineering Performance
Plant-Level Impact
Built to Last
Predictable wear progression
Modular replacement
Easy maintenance access
Long-term mechanical reliability
Technical Documentation
Lamella Kiln Seal - Technical Datasheet
Lamella Kiln Seal - Installation Guide
Oswal Kiln Seals - Full Product Catalog
Need custom technical documentation?
Our engineering team provides specification sheets, installation guides, and application-specific documentation on request.
Frequently Asked Questions
Common questions about the Lamella Kiln Seal.
Lamella-Based Sealing Elements are the spring-loaded compliant sealing components used in lamella-only Oswal kiln seals and as the primary (motion-absorbing) sealing stage in the Duplex hybrid design. Lamella elements absorb shell ovality, axial drift, and dynamic kiln motion, maintaining contact pressure through movement that would defeat a rigid graphite-only seal.
6-10 weeks for lamella sealing element sets from order confirmation to delivery. Replacement element-only orders 4-6 weeks. Expedited delivery on request.
Yes. Lamella sealing elements are designed as replaceable components within Oswal sealing systems. Retrofit into compatible third-party seal hardware is feasible on a case-by-case basis (engineering review required for geometry and stiffness matching).
Talk to Our Engineers
Discuss Your Sealing Requirements
Our engineering team will identify the optimal sealing solution for your specific kiln configuration and operating conditions.
